Heavy Truck & Equipment
6x4 Dump Truck
The Electric Dump Truck 6x4 is powered by a motor of up to 450 kW with 3000 Nm of torque, delivering strong hauling capability for mining, construction, and industrial logistics operations. It offers an operational range of 150–200 km.
The vehicle is equipped with Hill Start Assist, Slope Descent Control, ABS, ASR, and a 24-hour battery monitoring system for enhanced operational safety.
Its CBS and regenerative braking systems improve control and energy efficiency while reducing operational costs through lower maintenance and zero diesel fuel usage. The cabin is also designed to provide greater operator comfort with reduced vibration during heavy-duty operations.
8x4 Dump Truck
The Electric Dump Truck 8x4 is designed for higher payload capacity and heavy-duty mining operations. Powered by a 400 kWh battery system, it offers a driving range of up to 160 km per charge.
Its motor delivers 450 kW of power and 2500 Nm of torque with gradeability of ≥30%, making it suitable for steep mining terrain. The truck is also equipped with ABS, an energy recovery system, and CCS2 fast charging compatibility.
The 12-wheel configuration improves load stability and distribution, making the vehicle ideal for large-scale mining and industrial transport requiring high capacity and efficient performance.
Electric Truck Widebody 60 Tons
Electric Mining Truck Widebody is built for high-productivity mining operations with payload capacity up to 70 tons and body volume up to 40 m³ for maximum hauling efficiency. Powered by a 430 kW rated system with peak output up to 700 kW, it delivers strong performance, 40% gradeability, and reliable maneuverability in harsh terrain. Equipped with a 528.59 kWh battery and Yutong E-Drive dual five-in-one controller, it ensures efficient, stable, low-emission, and reliable operation.
Electric Widebody 70 Tons
This electric mining dump truck is engineered for large-scale mining efficiency with a 70-ton payload and 40 m³ body capacity, reducing haul trips and improving productivity.
Powered by a 510 kW motor with 820 kW peak power, it delivers up to 97% efficiency and handles 35% gradeability with stability on steep terrain. Safety features include a dual five-in-one controller, redundant steering system, and multi-layer braking system.
Equipped with a 528 kWh CATL LFP battery with IP68/IP6K9K protection, the truck is built for harsh environments. Its heavy-duty chassis, 3-speed transmission, and fast 25-second dumping system optimize mining operations.
Electric Widebody 100 Tons
This electric mining dump truck delivers extreme heavy-duty performance with a 100-ton payload capacity and 56 m³ body volume, making it ideal for large-scale mining operations.
Powered by a 660 kW motor with peak output up to 1000 kW and 97% efficiency, it provides strong and energy-efficient performance. Its 704 kWh LFP battery using CATL cells with IP68/IP6K9K protection ensures durability in harsh environments.
The truck features 35% gradeability, dual-circuit and motor braking systems, plus emergency braking for enhanced safety. A Hyva hydraulic system enables lifting in 25 seconds and lowering in 33 seconds, while advanced steering, suspension, and monitoring systems improve operator comfort and control.

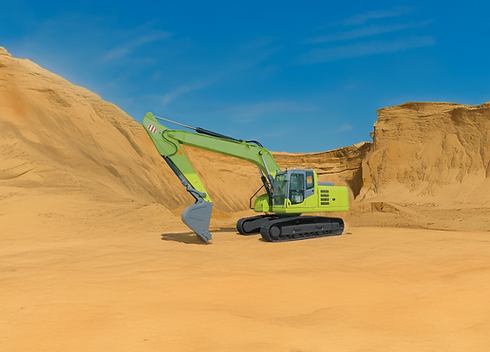

Electric Excavator JCE240EV
The MAB Electric Excavator JCE240EV is a 23.5-ton electric excavator designed for mining and heavy construction operations. Powered by a 140 kW Permanent Magnet Synchronous Motor with a 618.2 V system, it delivers stable and efficient performance.
Equipped with a 422.8 kWh battery, the excavator supports long operating hours and provides 139 kN bucket digging force with 115 kN arm force. It features a 1.17–1.4 m³ bucket capacity for demanding workloads.
With a maximum reach of 10,770 mm, digging depth of 6,875 mm, travel speed of 4.8 km/h, and 35% gradeability, the JCE240EV ensures strong stability and productivity in heavy-duty operating environments.
Electric Loader JCM908EV
The MAB Electric Loader JCM908EV is a fully electric compact loader powered by PMSM motors delivering 20 kW + 10 kW for efficient and low-emission performance. It supports a rated load of 700–800 kg with an operating weight of 2,450 kg, making it suitable for light to medium construction and material handling.
Equipped with a 144V 155Ah LiFePO4 battery, the loader offers enhanced safety, long cycle life, and fast DC charging in just 1.5 hours, supporting up to 5.5 hours of operation.
Its compact design features a 1,104 mm width and 2,530 mm turning radius, along with a maximum lifting height of 3,630 mm and dumping height of 2,228 mm for flexible job site operations.
Electric Loader JCM930EV
The MAB Electric Loader JCM930EV delivers high productivity with a 3000 kg rated load and 2 m³ bucket capacity, making it ideal for mining and heavy construction operations.
Powered by dual systems with 98 kW and 65 kW output, it provides strong and stable performance for lifting, pushing, and operating on tough terrain. With 170 kN maximum traction and climbing capability up to 28 degrees, the loader maintains stability in demanding conditions.
Fast charging in 30–40 minutes using a 300 kW charger helps reduce downtime, while IP65–IP67 protection, a wet drive axle, hydraulic braking, and clamp parking brake ensure durability and operational safety in harsh environments.
Electric Loader JCM950EV
MAB Electric Loader JCM950EV is a high-performance mining loader with 5,000 kg rated load and 3 m³ bucket capacity for efficient material handling. Powered by a 270 kW motor and 282 kWh LFP (618V) battery, it delivers strong, zero-emission performance. Fast 9.7-second cycle time (5.8s lift, 3.5s dump) boosts productivity. With 28° gradeability and 170 kN tractive force, it performs well on steepterrain. Operates 4–5 hours with 60-minute fast charging (300 kW), minimizing downtime.
Electric Loader JCM970EV
The MAB Electric Loader JCM970EV is a high-performance electric loader designed for heavy-duty mining and construction operations. It offers a 7,000 kg rated load capacity with a 4.2–4.5 m³ bucket for large-scale material handling.
Powered by a 510 kW electric motor, the loader delivers 195 kN maximum traction and 210 kN breakout force for demanding operations. It achieves a 9.7-second total cycle time, including 5.8-second lifting and 3.5-second dumping.
With 28° climbing capability, a top speed of 36 km/h, and a 350 kWh battery, the JCM970EV supports 60-minute fast charging and 5–7 hours of operation for maximum efficiency and productivity.
Electric Tractor Head 6x4
The Electric Tractor Head 6x4 delivers extreme heavy-duty hauling capability with a traction capacity of 100–140 tons, making it ideal for mining and heavy logistics operations.
Powered by a dual motor system rated at up to 800 kW ×2, it generates 2400 Nm of torque per motor for strong performance on tough terrain and steep inclines.
Equipped with a 600 kWh battery pack, the vehicle offers an operational range of 101–152 km for industrial and mining transport. Its 6×4 drivetrain, heavy-duty axles, and reinforced suspension ensure stability and reliable performance in extreme working conditions.
Electric Tractor Head 6x6
The Electric Tractor Head 6x6 is engineered for extreme heavy-duty operations such as mining, industrial logistics, and large material hauling. It delivers a traction capacity of up to 80,000 kg, powered by a 550 kW electric motor producing 2800 Nm of torque for strong acceleration and stability under heavy loads.
Its 6x6 drivetrain, ≥25% gradeability, and 270 mm ground clearance provide excellent off-road capability on steep and uneven terrain. A 600.92 kWh battery supports up to 200 km of operational range for daily industrial use.
Equipped with ABS, air braking with spring energy storage, and a heavy-duty steel chassis, the vehicle ensures maximum safety, durability, and reliable performance in demanding environments.
